6.0kW | Fujitsu | Lifestyle Next Range Series | Split System
6.0kW | Fujitsu | Lifestyle Next Range Series | Split System
SKU:ASTH22KMTD-NXT
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping fee will calculated at check out.
We guarantee that orders placedΒ before 11 amΒ will be dispatched theΒ same day (subject to stock availability),Β exclude weekendsΒ and holidays.Β After receiving your order confirmation message,Β you will receive another notification when your order has shipped.
Share
Description
Description
Ideal for mid-sized rooms.Β Β The Lifestyle Next range with smart climate control makes indoor comfort easy and cost-effective. With energy management features such as Human Sensor Control economy mode and weekly timers.Β
Warranty information: 5 Years

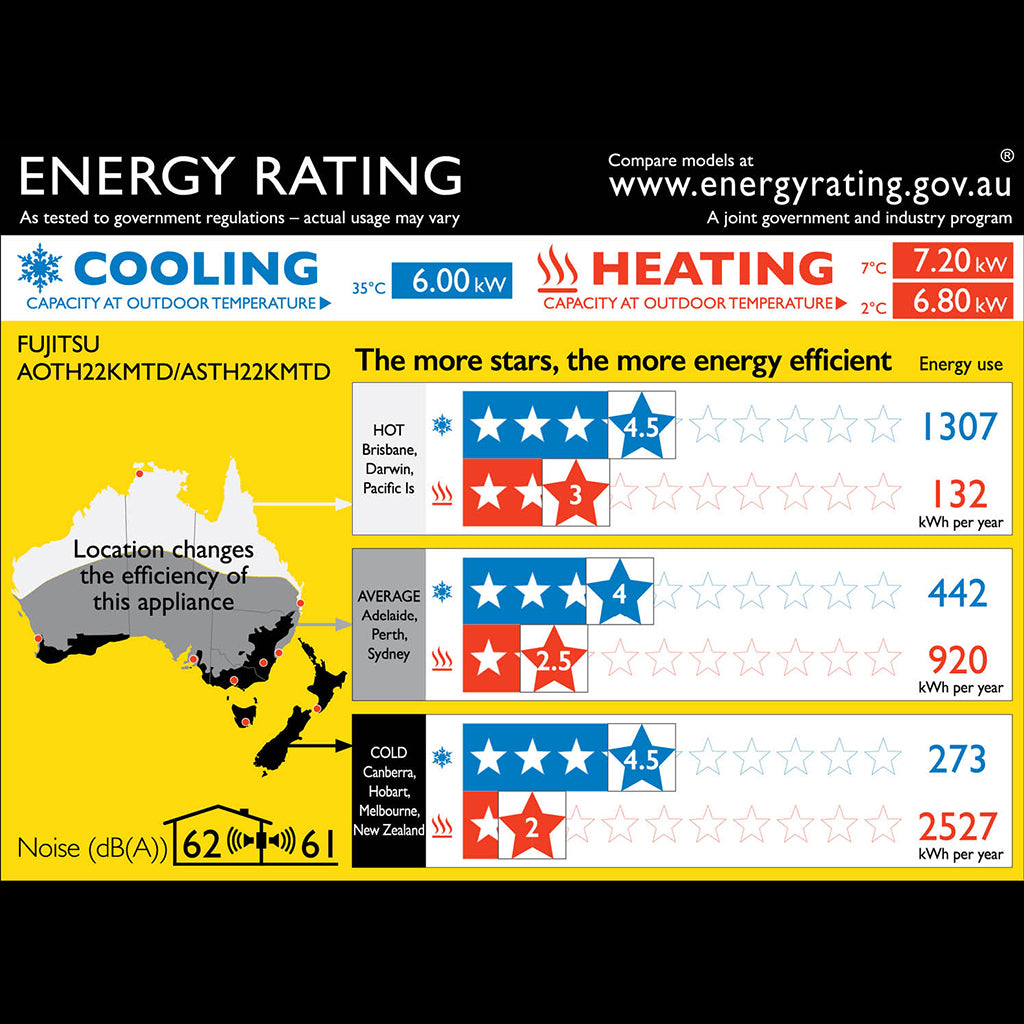

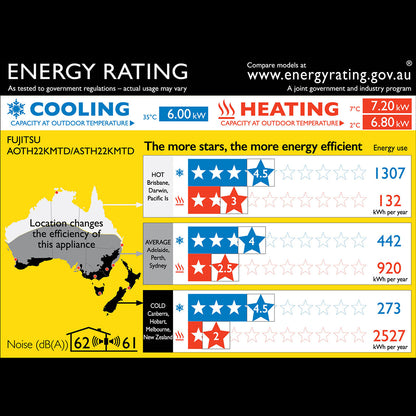

Energy Rating
![](https://cdn.shopify.com/s/files/1/0453/2322/3207/files/1495-x-1080---energy-rating-label-aoth22kmtd-asth22kmtde779ef2d-947c-4939-aaf5-fbb4f059b6e2_480x480.jpg?v=1724886525)
Disclaimer
Please note that any purchase of air conditioner product quantity exceeding three (3) units will be considered a bulk buy. For bulk purchases, please contact our customer service team at 1300 996 996 for an accurate quotation and to check the availability of the desired quantity.
Failure to contact customer service prior to making a bulk purchase may result in your payment being refunded or a prolonged waiting period for order fulfillment.
Specification
Specification
Fujitsu Datasheet
- Indoor unit: ASTG22KMTD
- Outdoor unit: AOTG22KMTD
- Operation Type: Reverse Cycle
- Power Source V/Ph/Hz: 230 / 1 / 50
- Cooling Capacity kW (Rated (Min - Max)): 6.00 (1.1 - 7.5)
- Heating Capacity kW (Rated (Min - Max)): 7.20 (1.1 - 9.4)
- Input Power Cooling kW (Rated (Min - Max)): 1.58 (0.24 - 2.72)
- Input Power Heating kW (Rated (Min - Max)): 1.7 (0.14 - 2.75)
- EER Cooling kW/kW: 3.8
- COP Heating kW/kW: 4.24
- Star Rating Cooling(0-10) (Hot / Average / Cold): 4.5 / 4 / 4.5
- Star Rating Heating(0-10) (Hot / Average / Cold): 3 / 2.5 / 2
- Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold): 6.009 / 5.714 / 6.146
- Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold): 4.64 / 4.258 / 3.722
- Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 6.672 / 7.138 / 8.111
- Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 4.631 / 4.393 / 3.951
- Running Current amps (Cooling / Heating): 7.1 / 7.7
- Moisture Removal l/hr: 2.3
- Indoor Sound Pressure Cooling dBA (High / Quiet): 48 / 29
- Indoor Sound Pressure HeatingdBA (High / Quiet): 48 / 29
- Outdoor Sound Pressured BA (Cooling / Heating): 49 / 52
- Outdoor Sound Power dBA: 61
- Air Circulation (Indoor - High Fan) Cooling l/sec: 294
- Air Circulation (Indoor - High Fan) Heating l/sec: 300
- Piping Connectsmm Γ (Liquid / Gas): 6.35 / 12.7
- Pipe Length m (Max (Precharged)): 30 (15)
- Max Height Difference: 25m
- Operation Range Cooling Β°CDB (Min to Max): -10 to 50
- Operation Range HeatingΒ°CDB (Min to Max): -15 to 24
- Refrigerant Type: R32
Dimension & Weight
Dimension & Weight

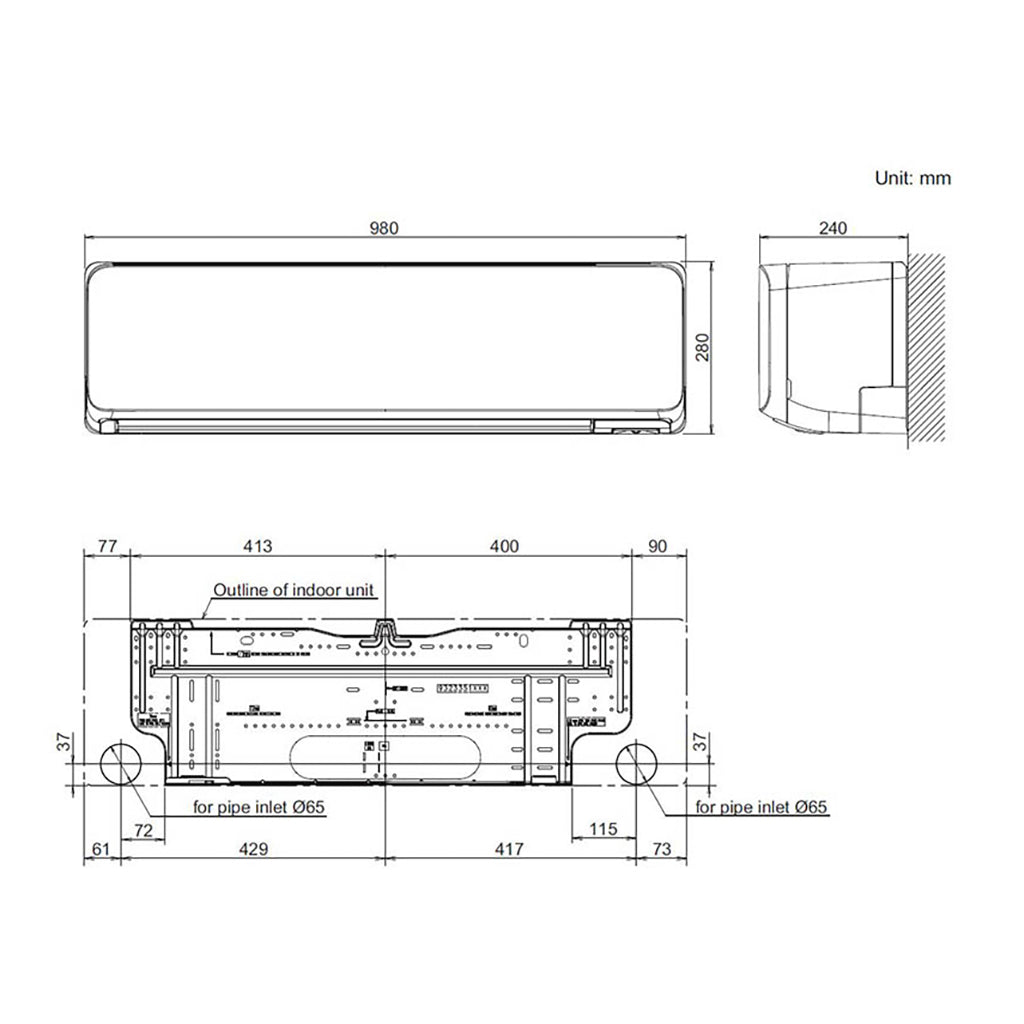

- Indoor Unit - H x W x D 280 x 980 x 240

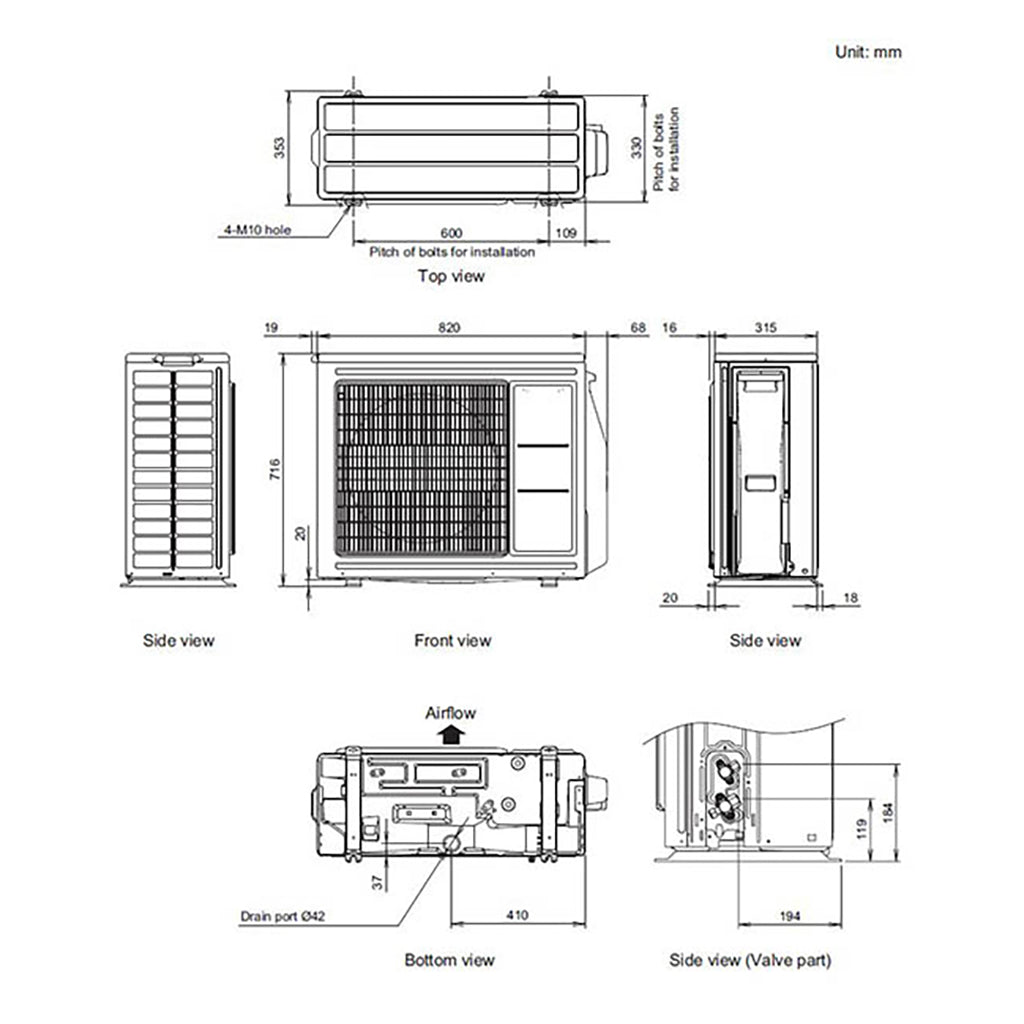

- Outdoor Unit - H x W x D 716 x 820 x 315
Indoor Weight: 12.5KG
Outdoor Weight: 42KG
Downloads
Downloads
Please refer to the datasheet for more detailed information:
![Fujitsu 2.5kW lifestyle split system star sparky](http://www.starsparky.com.au/cdn/shop/files/astg09kmtc.jpg?v=1705965428&width=1445)
![Fujitsu 2.5kW lifestyle split system star sparky](http://www.starsparky.com.au/cdn/shop/files/aotg09kmtc.jpg?v=1705965428&width=1445)
![Fujitsu 2.5kW lifestyle split system star sparky](http://www.starsparky.com.au/cdn/shop/files/ar-rew3e.jpg?v=1705965428&width=1445)
![6.0kW | Fujitsu | Lifestyle Next Range Series | Split System](http://www.starsparky.com.au/cdn/shop/files/microsoftteams-image-_13_png_d5bdcb07-2791-4b6b-af15-266936d49cb6.jpg?v=1724886395&width=1445)
![6.0kW | Fujitsu | Lifestyle Next Range Series | Split System](http://www.starsparky.com.au/cdn/shop/files/wall-mounted-lifestyle-reverse-cycle-astg18kmtc-astg22kmtc-astg24kmtcb2bd2c1f-c8b8-4002-b34d-90baa327cd8e-_1_bfa167fc-9563-4a61-a59f-13c83dc9.jpg?v=1724886552&width=1445)
![6.0kW | Fujitsu | Lifestyle Next Range Series | Split System](http://www.starsparky.com.au/cdn/shop/files/wall-mounted-lifestyle-reverse-cycle-aotg18kmtc-aotg22kmtc-aotg24kmtc221cbdca-bb4e-4498-8862-c08a45b2881f-_1.jpg?v=1724886552&width=1445)
![6.0kW | Fujitsu | Lifestyle Next Range Series | Split System](http://www.starsparky.com.au/cdn/shop/files/1495-x-1080---energy-rating-label-aoth22kmtd-asth22kmtde779ef2d-947c-4939-aaf5-fbb4f059b6e2.jpg?v=1724886525&width=1445)
